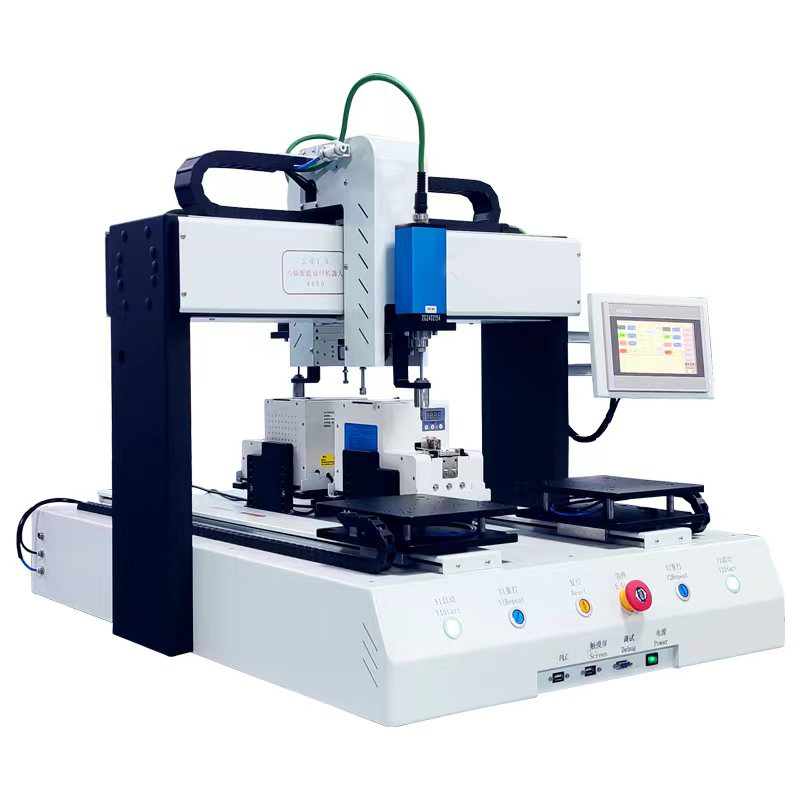

KWD-W660 Six axis back-to-back automatic screw machine

Product information

Range of screwing：180*300*90mm

Transmission method：15mm synchronous belt+linear track

Positioning accuracy：±0.02mm

Control system：Motion control card + touch screenr

Feeding Method：Vacuum suction/magnetic suction

Electric batch：Servo electric batch

Travel distance：X/500;Y/400:Z/100

Screw driving efficiency：1.5-1.8S

Program capacity：100 stes

Communication port：USB

Power supply：AC220V

Air pressure：0.5-0.6MPa

Equipment power：1000W

External dimensions：695*1030*750mm(L*W*H)

Overall machine weight：150Kg
