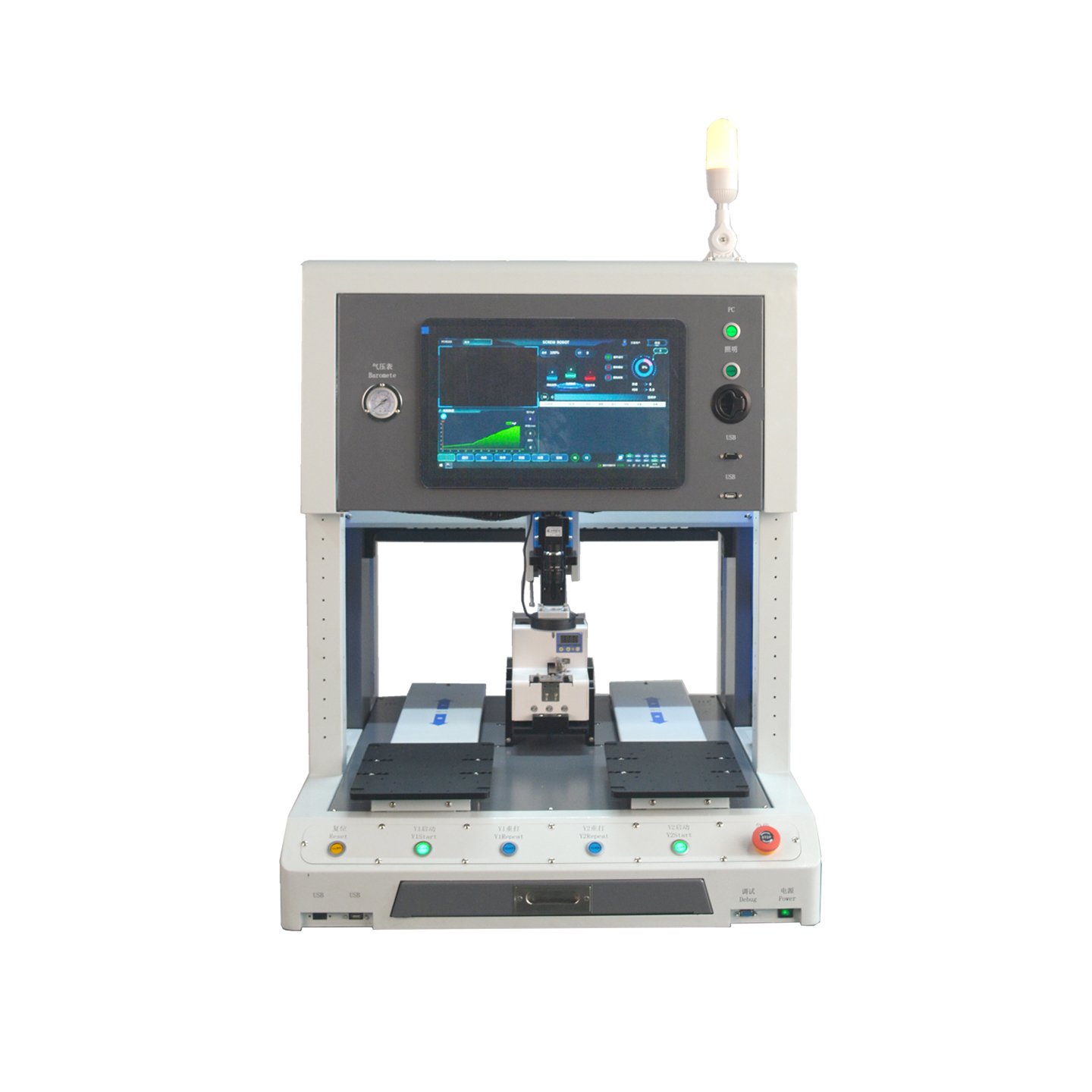

KWD-W380 Semi-cabinet type vision automatic screw machine

Product information

Range of screwing：180*300*90mm

Transmission method：15mm synchronous belt+linear track

Positioning accuracy：±0.02mm

Control system：Motion control card + industrial computer

Feeding Method：Vacuum suction/magnetic suction

Electric batch：Servo electric batch

Trravel distance：X/400;Y/400:Z/100

Screw driving efficiency：1.5S-1.8S

Program capacity：100 stes

Communication port：USB

Power supply：AC220V

Air pressure：0.5-0.6MPa

Equipment power：800W

External dimensions：780*738*970mm(L*W*H)

Overall machine weight：140Kg
