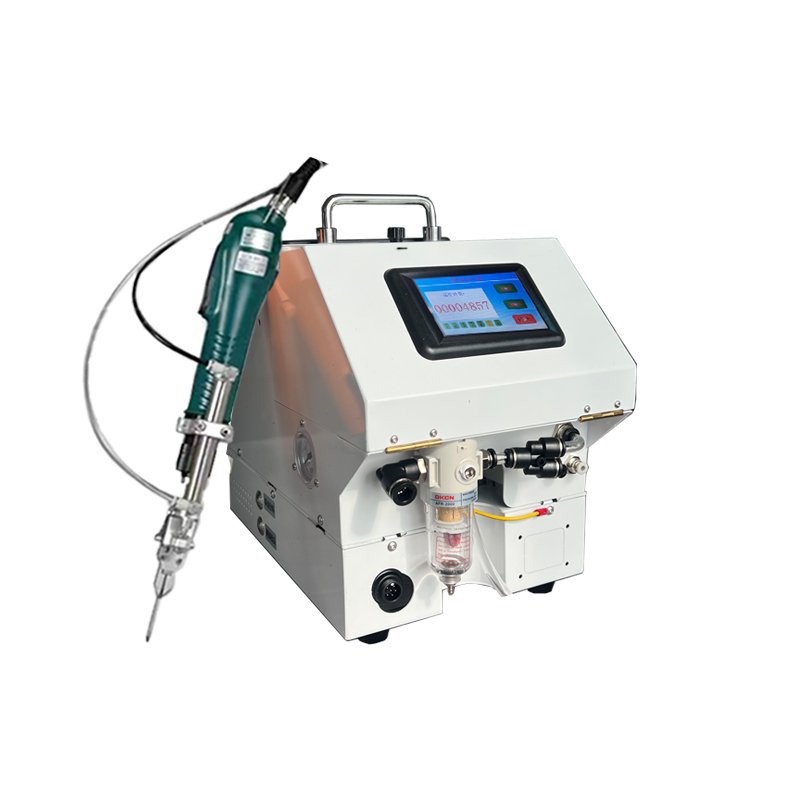

KWD-301A Handheld automatic screw machine

Product informationroduct information

External dimensions：370*220*280mm(L*W*H)

Overall machine weight：14Kg

Power supply：AC 220V  50/60HZ

Equipment power：100W

Working pressure：4-6KGF/c㎡

Conveying distance：1-3m

Storage bin capacity：3000 standard M2.0 * 8 screws

Screwdriver selection：Standard brushless electric batch (can

be customized according to customer requirements)

Screw type：Cross, plum blossom, hexagonal, triangular, Y-shaped screws

Applicable Industries：Highly versatile, covering almost all products

Device compatibility：Screw cap tolerance 0.3mm, length 5mm

Applicable screw models：M1-M6

Screw material：Iron, copper, stainless steel, nickel plating, etc

Feeding Method：Drum type feeding

Electric torque：1-10kg；3-19kg，5-25kg

（Customizable according to requirements）
